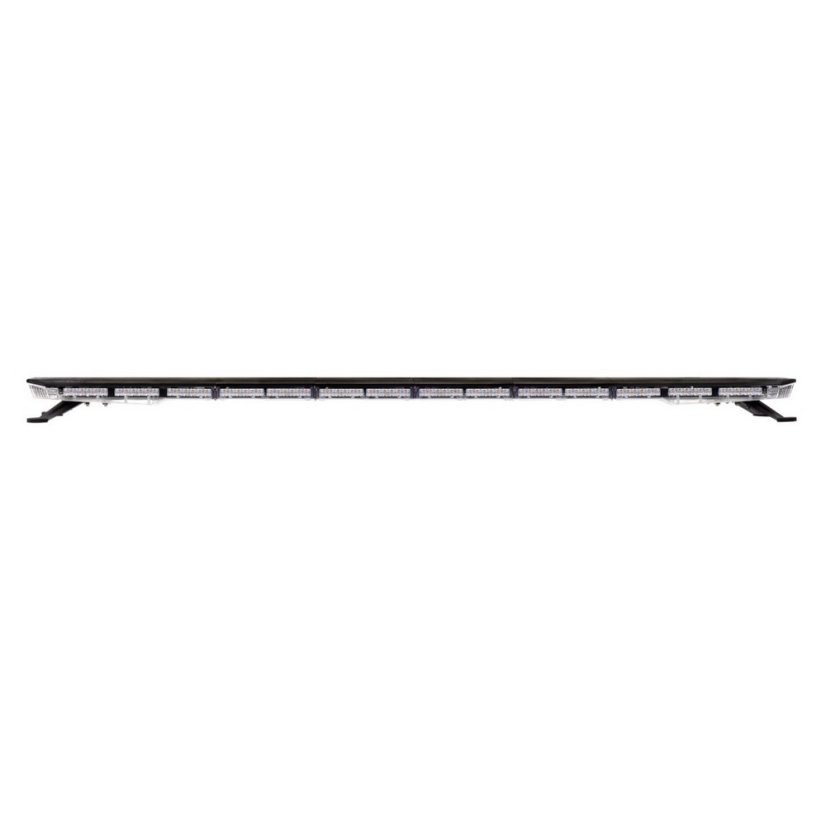

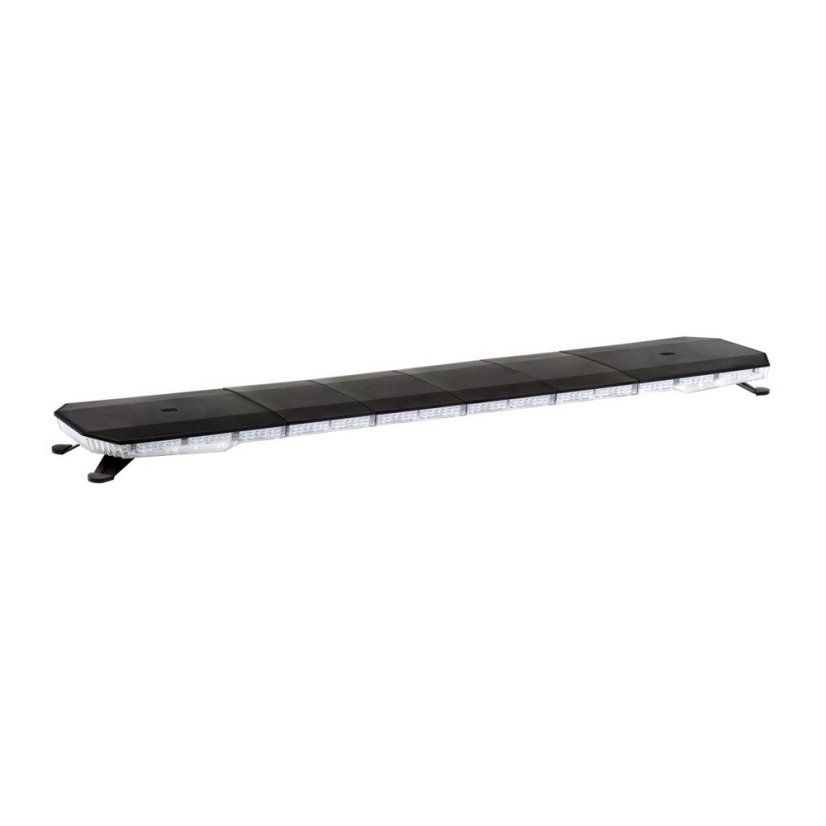

LED lightbar 1568mm, orange, 12-24V, 204xLED, ECE R65

LED lightbar 1568mm, orange, 12-24V, 204xLED, ECE R65


Sumbex
Product code: sre8-1568
629,80 Eur incl. VAT
In stock! (> 20 pcs) - Products in stock ordered up to 12PM are usually shipped the next working day!
Sumbex
Product code: sre8-1568

Orange LED light ramp suitable for all types of vehicles. It is designed for vehicles where special emphasis is placed on the warning effect.

The ramp has Class 2 approval, which means that it is capable of the so-called night mode.



Technical parameters:

- supply voltage 12 / 24 V

- light source: 204 x LED

- 51 variations of warning flashing modes including routing

- control by additional display

- aluminium base with solid PC cover

- ECE R65, R10 approval

- Dimensions: 1568 x 41 mm

- IP67 waterproof

- operating temperature -40 ºC - +65 ºC

- screw mounting

Color Orange
Certification ECE R10 covers the approval of vehicles and electrical/electronic equipment with regard to electromagnetic compatibility (EMC). It sets requirements so in-vehicle devices limit electromagnetic emissions and have adequate immunity to interference. EHK R65 TA1 denotes a Category T (360°) beacon, A = amber, in Class 1 (one standard intensity level). EHK R65 TA2 denotes a Category T (360°) beacon, A = amber, in Class 2 (two intensity levels including a reduced night mode).
Protection rating The product is dust-tight (no dust ingress) and resistant to temporary immersion (short-term immersion; typically up to 1 m for a limited time).
Voltage 12/24V
Connection type Connection and control via an external control box. Enables switching modes, intensity or flash patterns depending on the device.
Mounting type Screw mount – a stable installation using screws (typically through a base plate or mounting holes). Best where the beacon is intended to stay permanently installed.
Length 1568 mm
Lightbar height without carriers 41 mm
Before using the device, carefully read the instructions and follow the warnings, safety information, and recommendations to prevent injury or damage. If possible, test the product and its functionality before installation. Perform the installation with the power disconnected and observe the correct polarity. Check the correct voltage (12/24 V) and use the appropriate fuse. Do not use damaged cables, connectors, or devices. Ensure that the cables are securely fastened and routed away from sharp edges and hot parts of the engine. The lights can be very intense and hot: do not look directly into the light source and do not touch it immediately after operation. Keep out of reach of children and protect from water unless the product is specifically designed for outdoor use. When using on public roads, familiarize yourself with and comply with local regulations. Use the product only for its intended purpose.
Manufacturer's representative in the EU STUALARM IMPORT, s.r.o
Address of representative in the EU Na Křivce 1082/30, 10100 Praha 10 - Vršovice
EU representative email info@stualarm.cz
