Price
470,10 Eur incl. VAT
Recycling fee included in the price.
Product code
sre8-1168

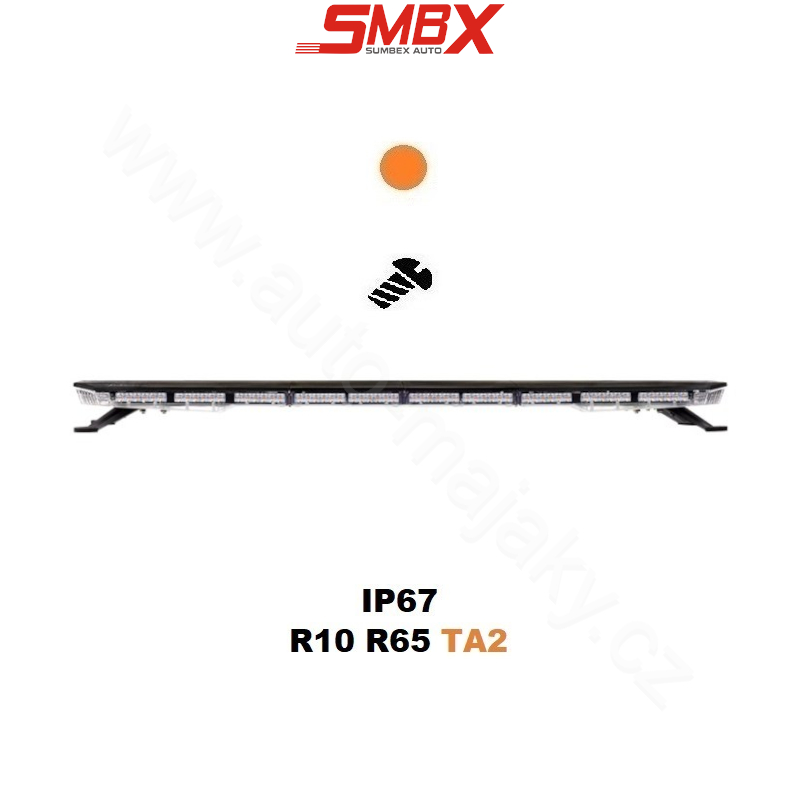

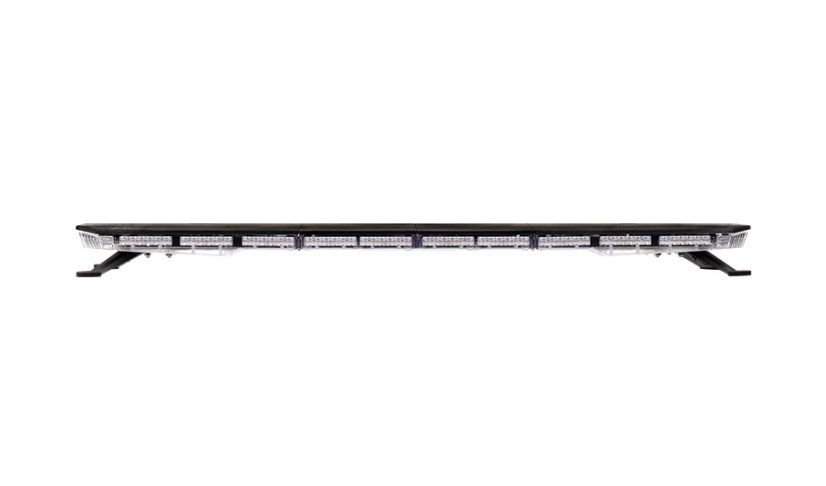

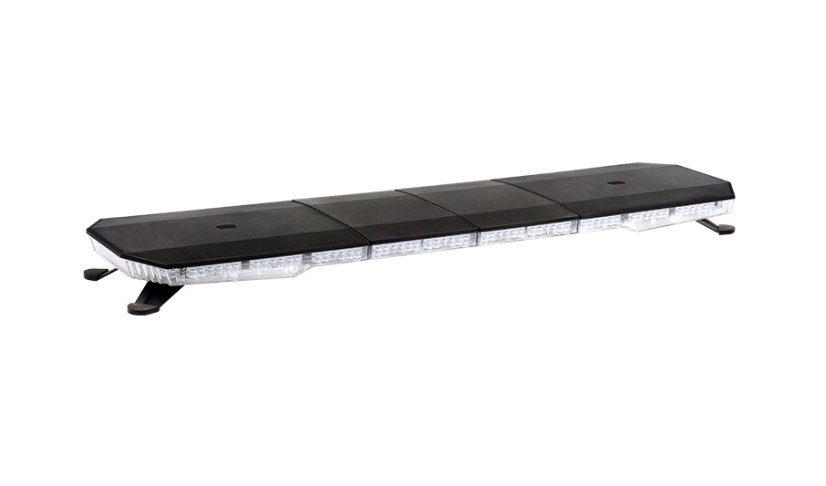

Orange LED light ramp suitable for all types of vehicles. It is designed for vehicles where special emphasis is placed on the warning effect.
The ramp has Class 2 approval, which means that it is capable of the so-called night mode.
Technical parameters:
- supply voltage 12 / 24 V
- light source: 156 x LED
- 51 variants of warning flashing modes including routing
- control by additional display
- aluminium base with solid PC cover
- ECE R65, R10 approval
- Dimensions: 1168 x 41 mm
- IP67 waterproof
- working temperature -40 ºC - +65 ºC
- screw mounting
| Color | Orange |
|---|---|
| Length | 1168 mm |
| Homologation | EHK R10, EHK R65 TA1, EHK R65 TA2 |
| Cover | IP67 |
| Voltage | 12/24V |
| Operating temperature | -40°C - +65°C |
| Light intensity levels | Two levels, One level |
| Lightbar height without carriers | 41 mm |
| Connection method | Control box |
| Method of attachment | Fixed to screws |
