SLIM LED light bar 1070 mm, orange, 12-24 V, 36+144 LEDs, ECE R65

Add to favourites Add to compare list

SLIM LED light bar 1070 mm, orange, 12-24 V, 36+144 LEDs, ECE R65

PRC
Product code: sre5slim-1070NR
323,20 Eur incl. VAT
In stock! (12 pcs) - Products in stock ordered up to 12PM are usually shipped the next working day!
PRC
Product code: sre5slim-1070NR

Thin (2.5 cm) orange LED light bar suitable for all types of vehicles. It is designed for vehicles where special emphasis is placed on the warning effect.

Due to its low height, it is particularly suitable for modern aerodynamic cars, where it does not cause excessive noise or increased fuel consumption.



Technical parameters:

• supply voltage: 12 V - 24 V

• power: 98 W

• light source: 36+144LED

• 14 variants of warning flashing modes

• homologation: ECE R65, R10

• Dimensions: 1070 mm (length)

• Waterproof: IP67

• Operating temperature: -40ºC to +65ºC

• Designed for permanent installation

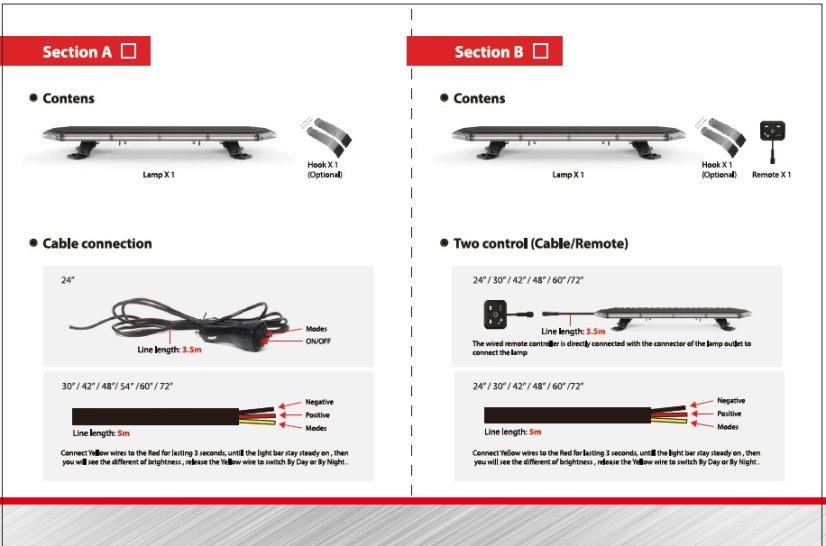

• Power cable (3.5 m with loose wires)

Color Orange
Certification ECE R10 covers the approval of vehicles and electrical/electronic equipment with regard to electromagnetic compatibility (EMC). It sets requirements so in-vehicle devices limit electromagnetic emissions and have adequate immunity to interference. EHK R65 TA1 denotes a Category T (360°) beacon, A = amber, in Class 1 (one standard intensity level).
Protection rating The product is dust-tight (no dust ingress) and resistant to temporary immersion (short-term immersion; typically up to 1 m for a limited time).
Voltage 12/24V
Connection type Connection using loose wires. Suitable for connection via your own switches or connection to assemblies.
Mounting type Screw mount – a stable installation using screws (typically through a base plate or mounting holes). Best where the beacon is intended to stay permanently installed.

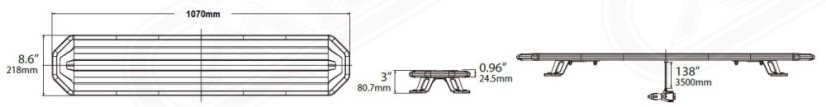

Length 1070 mm
Height 87 mm
Width 218 mm
Before using the device, carefully read the instructions and follow the warnings, safety information, and recommendations to prevent injury or damage. If possible, test the product and its functionality before installation. Perform the installation with the power disconnected and observe the correct polarity. Check the correct voltage (12/24 V) and use the appropriate fuse. Do not use damaged cables, connectors, or devices. Ensure that the cables are securely fastened and routed away from sharp edges and hot parts of the engine. The lights can be very intense and hot: do not look directly into the light source and do not touch it immediately after operation. Keep out of reach of children and protect from water unless the product is specifically designed for outdoor use. When using on public roads, familiarize yourself with and comply with local regulations. Use the product only for its intended purpose.
Manufacturer's representative in the EU STUALARM IMPORT, s.r.o
Address of representative in the EU Na Křivce 1082/30, 10100 Praha 10 - Vršovice
EU representative email info@stualarm.cz
