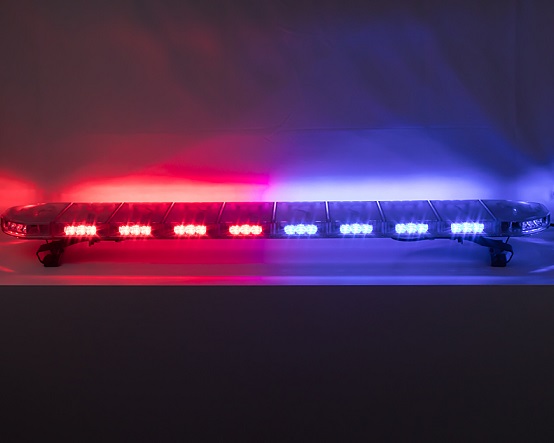

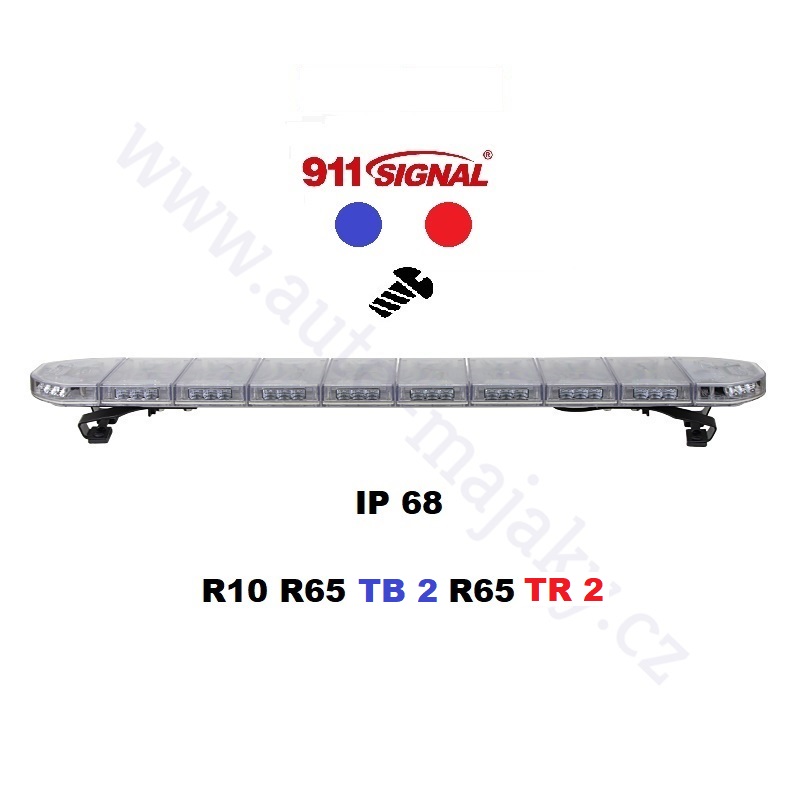

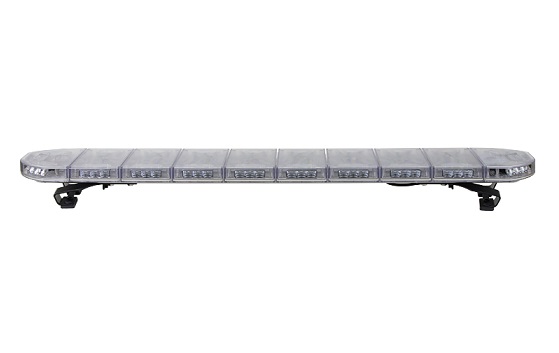

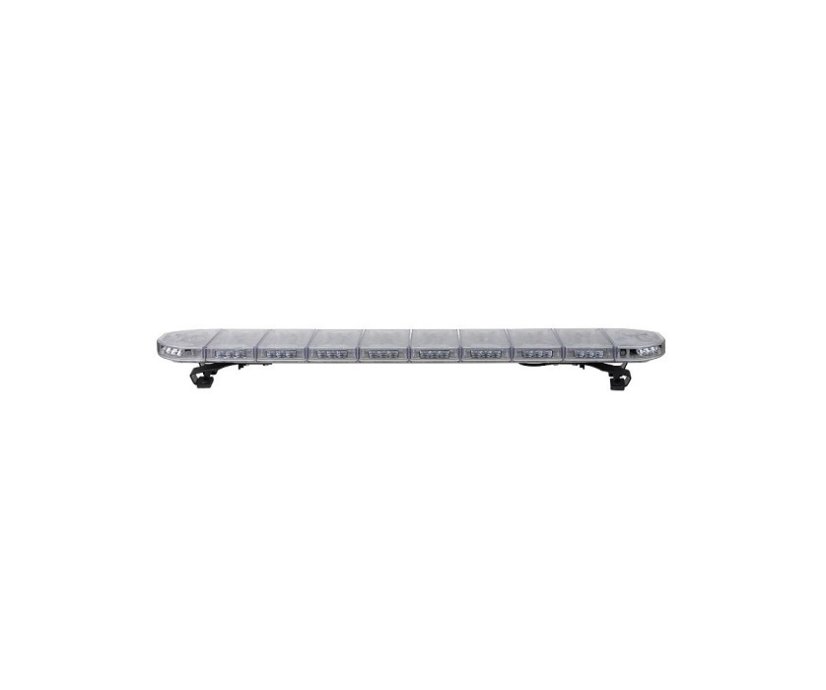

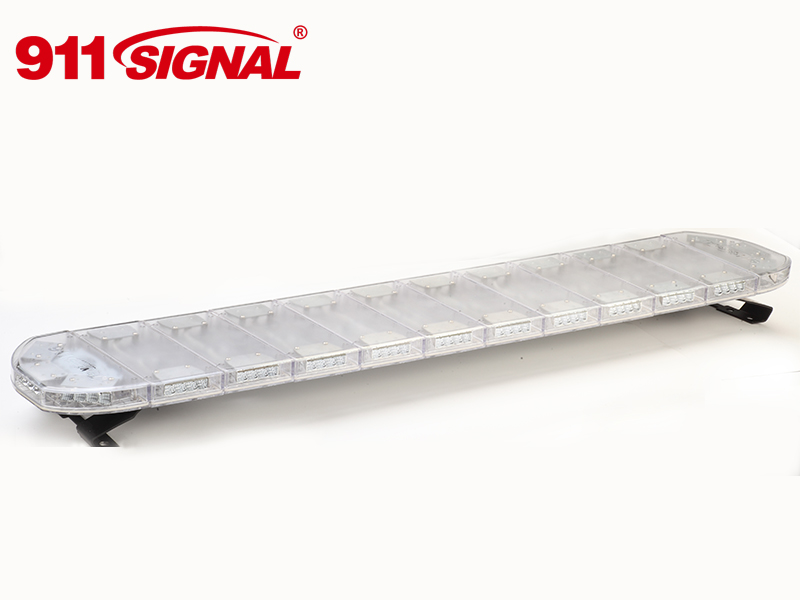

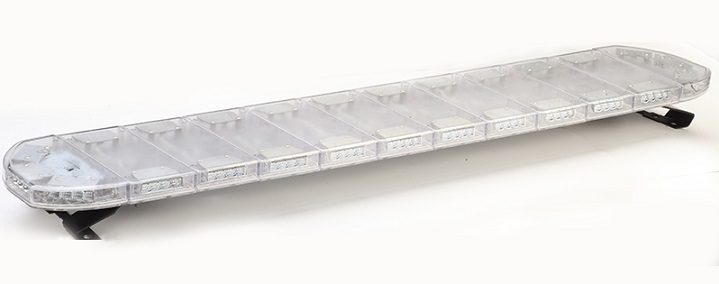

LED lightbar blue-red 120 cm, 12/24V, ECE R65

Thanks to its dimensions, the blue-red LED lightbar is suitable for all types of vehicles. It also meets the increased requirements of the technical requirements of the Fire and Rescue Service of the Czech Republic number TP-STS / 20-2019 for warning lights dated 18.3.2019, including possible synchronization with 2 beacons.

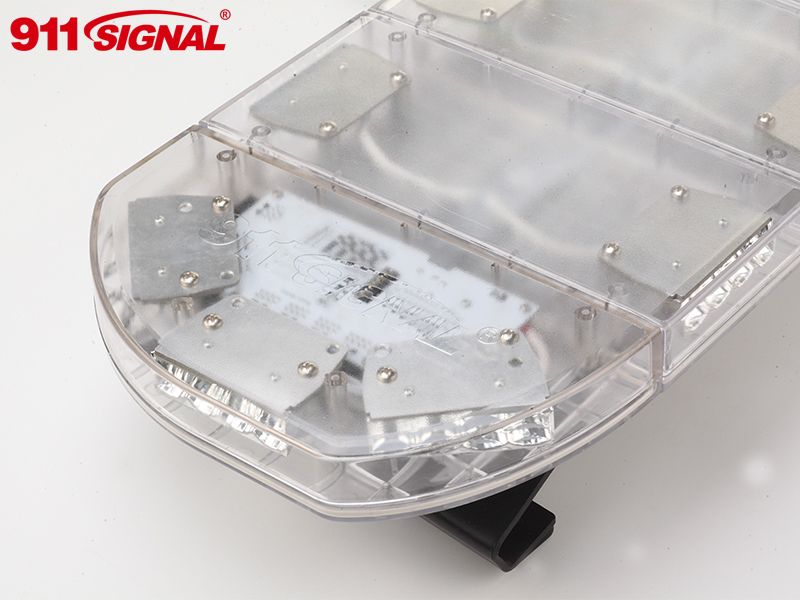

It is designed for vehicles with special emphasis on the warning effect. The thinnest and lightest LED ramp on the market. Special innovations: aluminum screws are used for mounting the LED modules. The heat generated by the LED modules is sucked in by screws and transferred to the aluminum base, where it is then dissipated by air passing under the light ramp. This allows you to maximize the brightness without shortening the life of the LED modules due to overheating. This technology is patented. Another innovation is the addition of 2 screw holes at the ends of the ramp. These openings can easily be used, for example, for mounting cameras or work lights. The ramp allows synchronization with the blue and red beacons using synchronization cables and activation of day / night mode. Dimming of lighting and both beacons.

Notice!

Beacons, 1X blue and 1X red can be purchased by choosing variants, they are not included in the basic price. This synchronization can be used with only one flashing mode, alternating between the left and right sides.

Appearance and parameters of Beacons

• homologation according to ECE R65, ECE R10

• light source: 24 powerful 3W LEDs

• plastic cover with UV protection

• base made of solid plastic

• designed for fixed mounting, fastening with 4 screws

• protection against humidity IP67

• supply voltage 12-24V

• working temperature -40 ° C - +65 ° C

• dimensions: base diameter 133 mm, beacon diameter 120 mm, height 86 mm

Technical parameters of the Lightbar

• supply voltage 12-24 V

• power 264 W

• light source: 88 powerful LEDs 3 W

• working temperature: -30 oC - +80 oC

• special dishes for a strong warning effect

• 29 different variants of warning flashing modes

• ECE approval R65 class 2, R10

• dimensions: 1200 x 250 x 45 mm

• waterproof IP68 (dual waterproofing including gas permeable membrane)

• mounting using brackets directly on the roof of the vehicle

• 5 m 7-core connection cable Connection:

• cable terminated with free wires (modes can be switched using the rocker switch, or it is possible to order the SRE911-SKY01 controller separately, for which only three functions can be used)
