SLIM LED light bar 1336 mm, orange, 12-24 V, 360 LEDs, 76 W, ECE R65

Add to favourites Add to compare list

SLIM LED light bar 1336 mm, orange, 12-24 V, 360 LEDs, 76 W, ECE R65

PRC
Product code: sre3-1336
367,40 Eur incl. VAT
In stock! (> 20 pcs) - Products in stock ordered up to 12PM are usually shipped the next working day!
PRC
Product code: sre3-1336

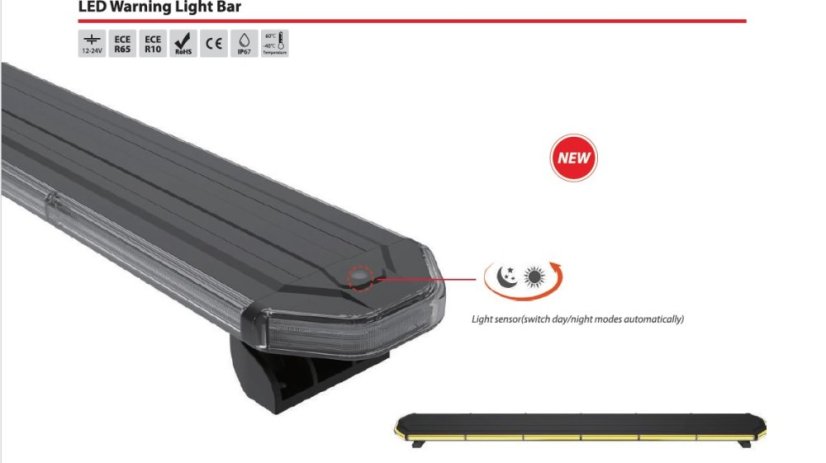

The low-profile light bar will be a great addition to your car. The integrated photodiode ensures automatic switching between day and night modes. (Class 2) Day mode can be manually switched from night mode. The intensity of the LED diodes provides uniform lighting. The reinforced base is corrosion resistant.



Technical parameters:

• supply voltage 12/24 V

• light source: 360 x LED

• 14 variants of warning flashing modes, including directional

• control via a separate wire on the cabling

• aluminum base with a solid PC cover

• ECE R65, R10 approval

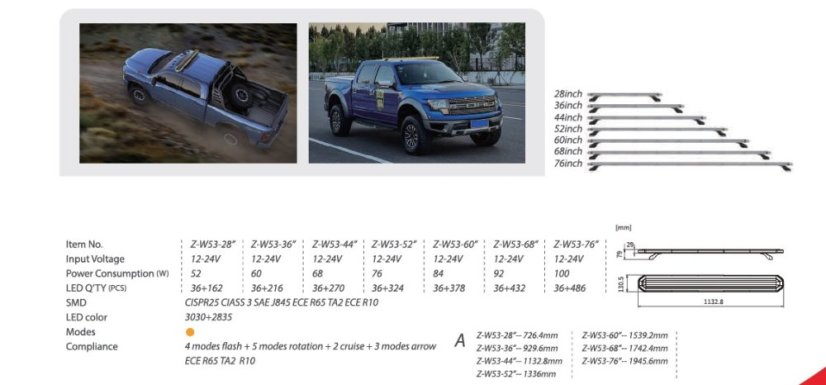

• dimensions: 1336 x 130 mm

• thickness only 29 mm, height above vehicle 79 mm

• waterproof IP67

• operating temperature -40 ºC - +65 ºC

• screw mounting

Color Orange
Certification ECE R10 covers the approval of vehicles and electrical/electronic equipment with regard to electromagnetic compatibility (EMC). It sets requirements so in-vehicle devices limit electromagnetic emissions and have adequate immunity to interference. EHK R65 TA2 denotes a Category T (360°) beacon, A = amber, in Class 2 (two intensity levels including a reduced night mode).
Protection rating The product is dust-tight (no dust ingress) and resistant to temporary immersion (short-term immersion; typically up to 1 m for a limited time).
Voltage 12/24V
Mounting type Screw mount – a stable installation using screws (typically through a base plate or mounting holes). Best where the beacon is intended to stay permanently installed.
Length 1336 mm
Height 29 mm
Width 130 mm
Before using the device, carefully read the instructions and follow the warnings, safety information, and recommendations to prevent injury or damage. If possible, test the product and its functionality before installation. Perform the installation with the power disconnected and observe the correct polarity. Check the correct voltage (12/24 V) and use the appropriate fuse. Do not use damaged cables, connectors, or devices. Ensure that the cables are securely fastened and routed away from sharp edges and hot parts of the engine. The lights can be very intense and hot: do not look directly into the light source and do not touch it immediately after operation. Keep out of reach of children and protect from water unless the product is specifically designed for outdoor use. When using on public roads, familiarize yourself with and comply with local regulations. Use the product only for its intended purpose.
