LED ramp orange, 20LEDx0,5W, magnet, 12-24V, 304mm, ECE R65 R10 :: Warning lights for cars

LED ramp orange, 20LEDx0,5W, magnet, 12-24V, 304mm, ECE R65 R10

Add to favourites Add to compare list

LED ramp orange, 20LEDx0,5W, magnet, 12-24V, 304mm, ECE R65 R10

Chiming
Product code: sre2-211
45,90 Eur incl. VAT
In stock! (108 pcs) - Products in stock ordered up to 12PM are usually shipped the next working day!
Chiming
Product code: sre2-211

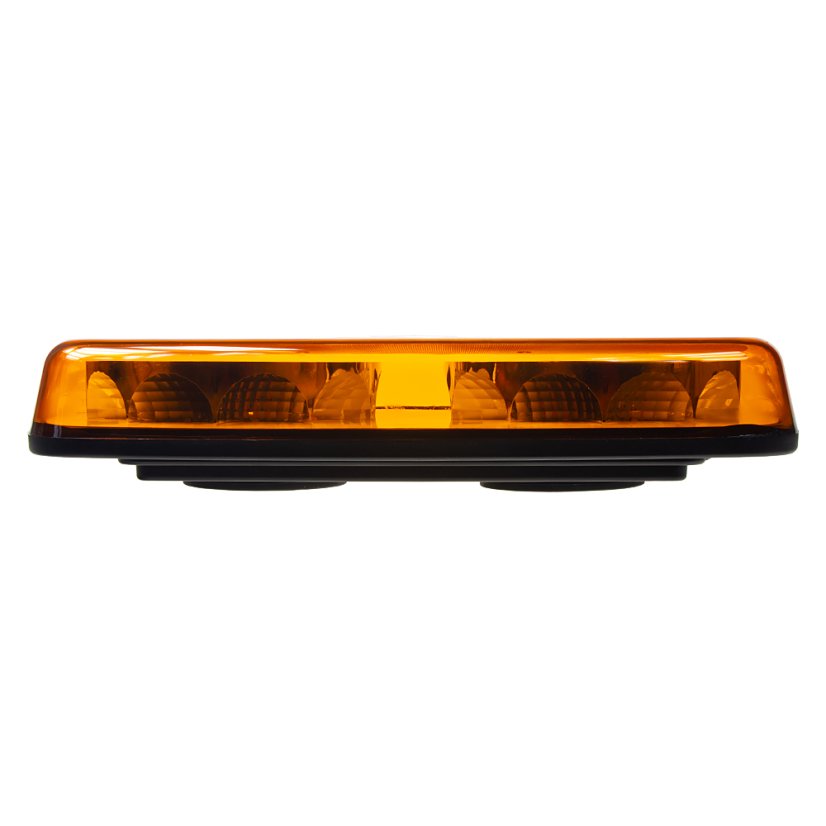

The orange miniature LED light ramp is suitable for all types of vehicles due to its dimensions. It is designed for vehicles where special emphasis is placed on the warning effect.



Technical parameters:

- supply voltage 12-24 V

- power 38 W

- light source: 20x SMD2835 LED chip

- 7 variants of warning flashing modes including rotary mode

- ECE R10, ECE R65 approval

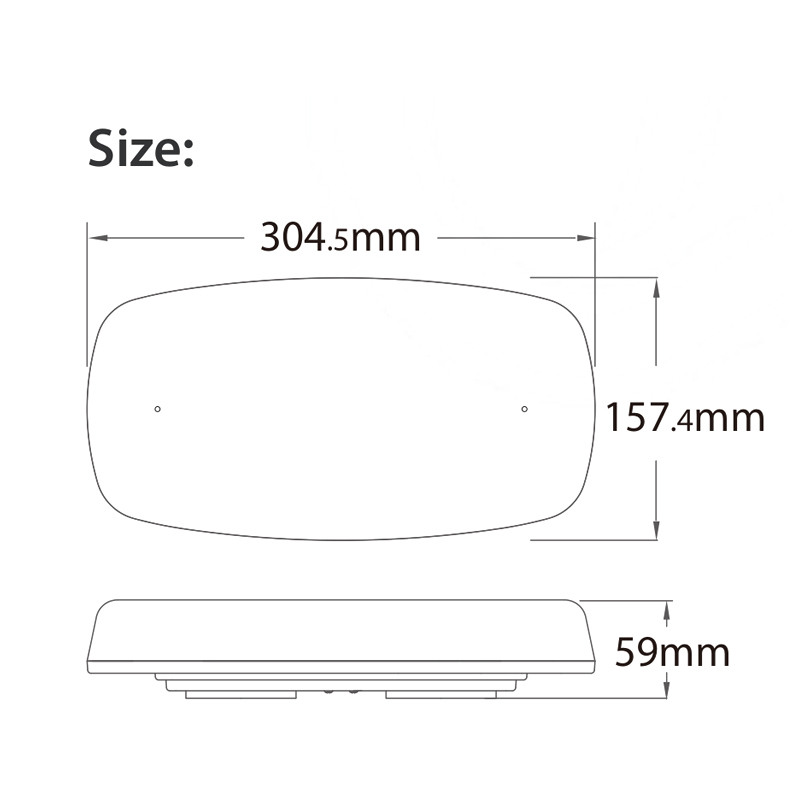

- Dimensions: 304.5 x 157.4 x 59 mm

- IP67 waterproof

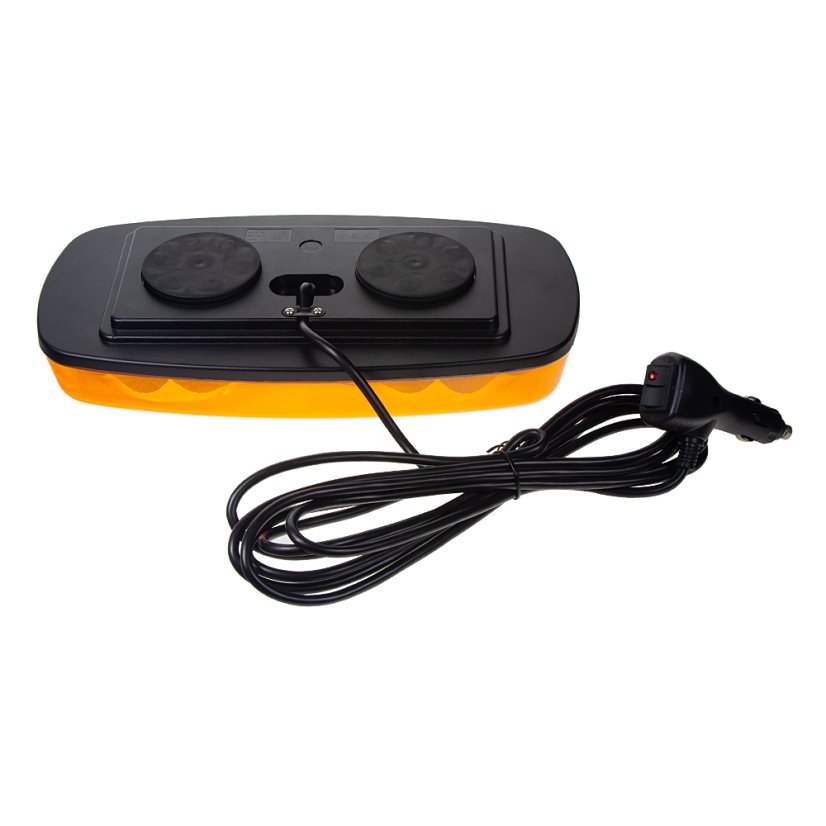

- Magnetic attachment

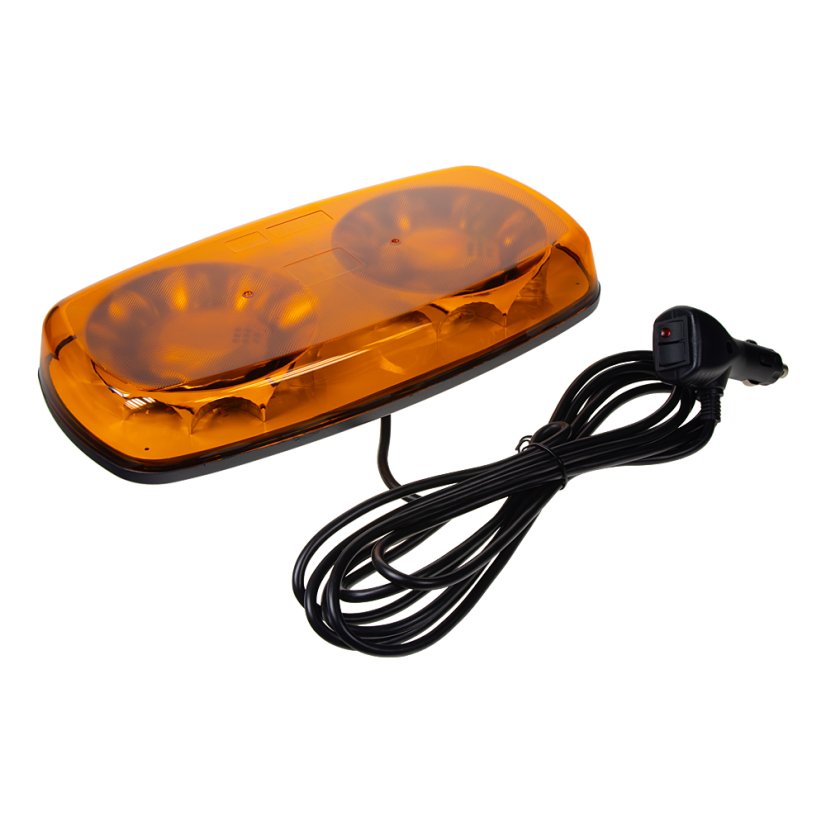

- connection: cable terminated with CL plug for cigarette lighter, cable length 250 cm



Warning:

Magnetic beacons and ramps are not fixed and are mainly intended for marking a stationary vehicle!!! When used while driving, high speeds (weather, wind, dirt on the vehicle) can cause the ramp/beacon to fall and be destroyed. Caution - a dropped beacon/ramp can cause material damage or endanger health and life. Neither the manufacturer nor the dealer accepts any responsibility for the magnetic beacon (ramp) used while driving.

Color Orange
Certification ECE R10 covers the approval of vehicles and electrical/electronic equipment with regard to electromagnetic compatibility (EMC). It sets requirements so in-vehicle devices limit electromagnetic emissions and have adequate immunity to interference. EHK R65 TA1 denotes a Category T (360°) beacon, A = amber, in Class 1 (one standard intensity level).
Protection rating The product is dust-tight (no dust ingress) and resistant to temporary immersion (short-term immersion; typically up to 1 m for a limited time).
Voltage 12/24V
Connection type Power via a cigarette lighter (CL) plug / socket. Quick connection without permanent installation.
Mounting type Magnetic mounting – quick, temporary mounting on metal surfaces without drilling. Magnetic beacons are usually equipped with a power cord with a CL plug.
Length 305 mm
Height 59 mm
Width 162 mm
Before using the device, carefully read the instructions and follow the warnings, safety information, and recommendations to prevent injury or damage. If possible, test the product and its functionality before installation. Perform the installation with the power disconnected and observe the correct polarity. Check the correct voltage (12/24 V) and use the appropriate fuse. Do not use damaged cables, connectors, or devices. Ensure that the cables are securely fastened and routed away from sharp edges and hot parts of the engine. The lights can be very intense and hot: do not look directly into the light source and do not touch it immediately after operation. Keep out of reach of children and protect from water unless the product is specifically designed for outdoor use. When using on public roads, familiarize yourself with and comply with local regulations. Use the product only for its intended purpose.
Manufacturer's representative in the EU STUALARM IMPORT, s.r.o
Address of representative in the EU Na Křivce 1082/30, 10100 Praha 10 - Vršovice
EU representative email info@stualarm.cz
