LED beacon orange 12/24V, fixed mounting, LED 18X 1W, R65 :: Warning lights for cars

LED beacon orange 12/24V, fixed mounting, LED 18X 1W, R65

Add to favourites Add to compare list

LED beacon orange 12/24V, fixed mounting, LED 18X 1W, R65

star 1star 2star 3star 4star 5 (1) Rating value is 5 of 5
YL Professional orange LED beacon with a strong warning effect for fixed installation More
Product code: wl310fix
39,50 Eur incl. VAT
In stock! (2 pcs) - Products in stock ordered up to 12PM are usually shipped the next working day!
YL Professional orange LED beacon with a strong warning effect for fixed installation More
Product code: wl310fix

Professional orange LED beacon with strong warning effect. Designed for fixed mounting with screws.

Technical parameters:

• ECE R65 approved

• light source: 18 powerful 1W LEDs

• 7 flashing modes

• synchronization with other beacons of the same type

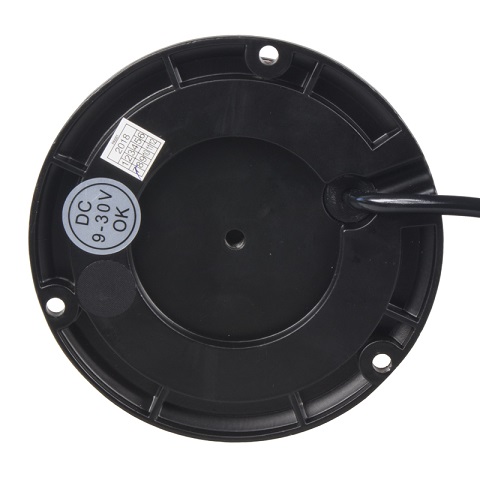

• Fixed with 3 screws

• IP67 moisture protection

• supply voltage 12-24V

• Working temperature -40 °C - +65 °C

• dimensions: diameter 112 x height 46 mm

Engagement:

• Red + 12 / 24V

• black - ground

• the yellow wire changes the blinking program (to -) if it needs to be synchronized with other lights, the yellow wires must be connected, and the white wire must be connected to the white wire of the other light.

Color Orange

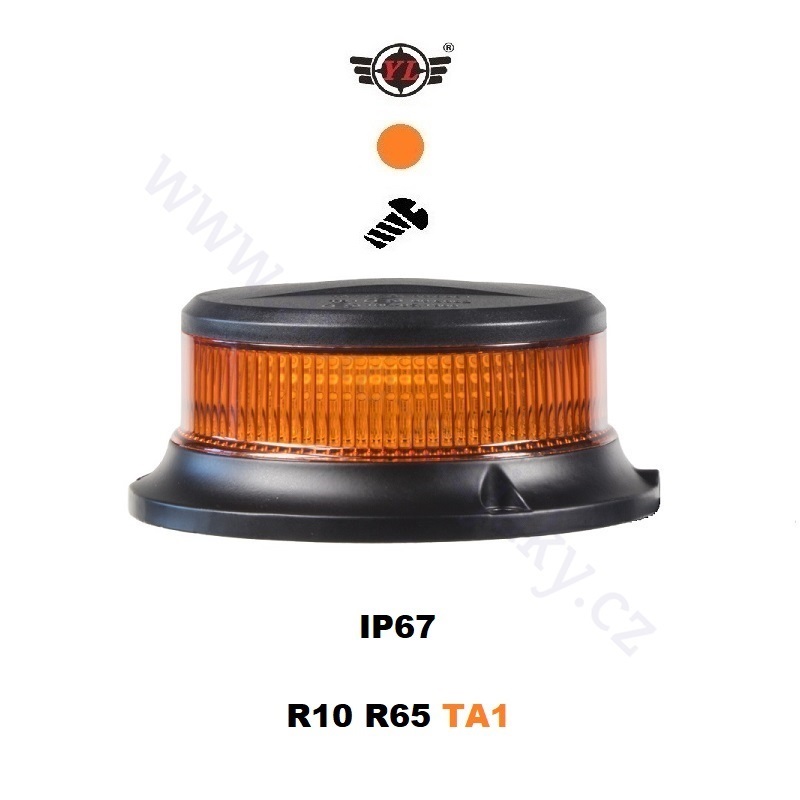

Certification ECE R10 covers the approval of vehicles and electrical/electronic equipment with regard to electromagnetic compatibility (EMC). It sets requirements so in-vehicle devices limit electromagnetic emissions and have adequate immunity to interference. EHK R65 TA1 denotes a Category T (360°) beacon, A = amber, in Class 1 (one standard intensity level).
Protection rating The product is dust-tight (no dust ingress) and resistant to temporary immersion (short-term immersion; typically up to 1 m for a limited time).
Voltage 12/24V
Connection type Connection using loose wires. Suitable for connection via your own switches or connection to assemblies.
Mounting type Screw mount – a stable installation using screws (typically through a base plate or mounting holes). Best where the beacon is intended to stay permanently installed.

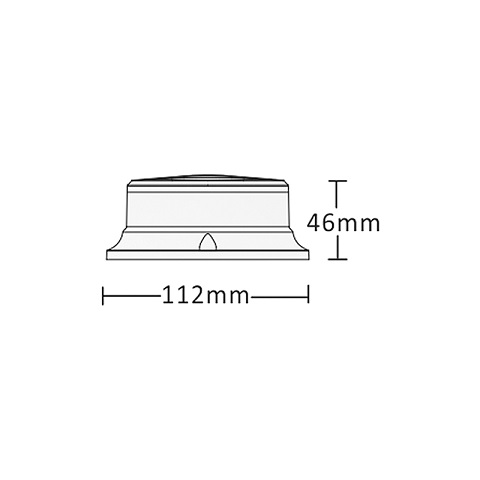

Diameter 112 mm
Height 46 mm
Before using the device, carefully read the instructions and follow the warnings, safety information, and recommendations to prevent injury or damage. If possible, test the product and its functionality before installation. Perform the installation with the power disconnected and observe the correct polarity. Check the correct voltage (12/24 V) and use the appropriate fuse. Do not use damaged cables, connectors, or devices. Ensure that the cables are securely fastened and routed away from sharp edges and hot parts of the engine. The lights can be very intense and hot: do not look directly into the light source and do not touch it immediately after operation. Keep out of reach of children and protect from water unless the product is specifically designed for outdoor use. When using on public roads, familiarize yourself with and comply with local regulations. Use the product only for its intended purpose.
Manufacturer's representative in the EU STUALARM IMPORT, s.r.o
Address of representative in the EU Na Křivce 1082/30, 10100 Praha 10 - Vršovice
EU representative email info@stualarm.cz
